Our electrical terminal / junction box portfolio @ A Glance

When SIZE matters...

Peekn Services offer 350+ models of electrical terminal / junction boxes for industrial applications & / or electronic projects.

Navigation...

With so many models & material to choose from, we have 2 short(ish) cuts for you to choose from.

Option 1: Please scroll down and choose your preferred material, That material may occur more than once due to different family sizes or available accessories.
  There is a pdf attached in the resources tab of each product family or you can follow the link to each family's home page..

Option 2: Select your terminal box by size....

  Table 1 is sorted by Depth, then Height, then by Width > Go there

  Table 2 is sorted by Height, then by Width. then by Depth > Go there

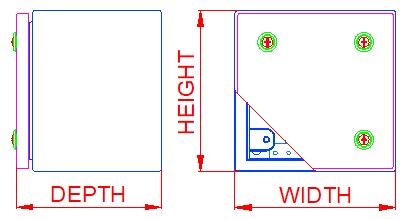

General guide for terminal box sizes
general dimensional structure of Peekn Services terminal boxes
ELA1515135 shown as example
CAD drawings available on request


Terminal / Junction / Project Boxes


Polycarbonate / ABS / FRP / GRP / Mild Steel / Stainless Steel

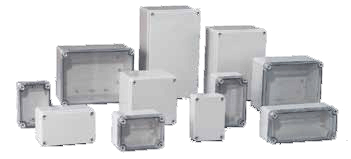

PSPK Series Polycarbonate Terminal Boxes

PSPK Series - IP66 Polycarbonate Terminal / Junction Boxes
75 Models*, Grey FRP Covers / Transparent PC Covers,
65W x 65H x 57D ~ 360W x 254H x 165D
Supply includes: Terminal Box Only
Available accessories include: Wall mounting Brackets, Mounting plates**, Hinges**.
* carton qty's only ** not available for all models
RESOURCES: > PSPK Sizes PDF (85kb) > Plastic Terminal Boxes (xxxkb)
GEAP Fibreglass Series

GEAP Series - IP66 / IP67 ABS / Polycarbonate Terminal / Junction Boxes
18 Models, FRP Bases, IP67 (Opaque FRP Cover), IP66 (Clear polycarbonate cover)
186 x 151 x 140 ~ 603 x 603 x 175
Supply includes: Terminal Box Only
Available accessories include: Depth Extension Frames, Wall mounting Brackets, Steel mounting plates, Pertinax mounting plates, Hinges, Padlock kits, IP20 Air vents, DIN Rails, Terminal blocks, Glands...
RESOURCES: > GEAP Sizes PDF (83kb) > Plastic Terminal Boxes (xxxkb)

Die Cast Aluminium Box

PSGA Series - IP66 Cast Aluminium Terminal / Junction Boxes
16 Models, RAL 7001
150 x 150 x 95 ~ 600 x 400 x 135
Supply includes: Terminal Box Only
Available accessories include: Wall mounting Brackets, 2mm Gal mounting plates
RESOURCES: > PSGA Sizes PDF (82kb) > Plastic Terminal Boxes (xxxkb)

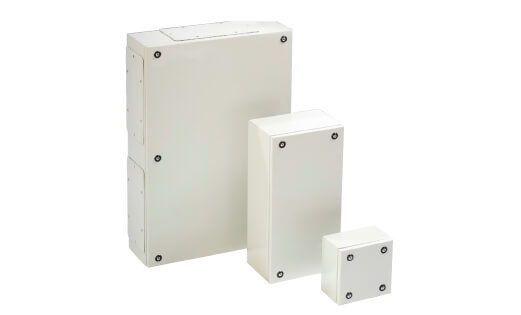

ELA Series Mild Steel Terminal Boxes

ELA Series - IP65 Mild Steel Terminal / Junction Boxes
19 Models, RAL 7035
150 x 150 x 90 ~ 600 x 400 x 135
Supply includes: Terminal Box Only
Available accessories include: Wall mounting Brackets, 2mm Gal mounting plates
RESOURCES: > ELA Sizes PDF (82kb) > Steel Terminal Boxes (xxxkb)

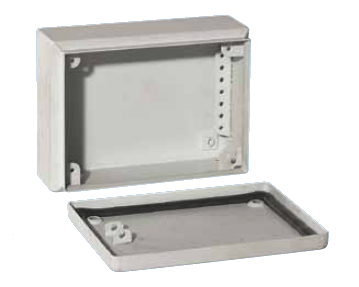

PSKLM Series IP Mid Steel Electrical Terminal Junction Box

PSKLM Series - IP66 Mild Steel Terminal / Junction Boxes
24 Models, Texture powder coated RAL 7035
150 x 150 x 80 ~ 800 x 400 x 135
Supply includes: Terminal Box Only
Available accessories include: Wall mounting Brackets, Mounting plates
RESOURCES: > PSKLM Sizes PDF (82kb) > Steel Terminal Boxes (xxxkb)

PSEB Series hinged terminal boxes wih hinged doors

PSEB Series - IP66 Mild Steel - Hinged / Lockable Terminal / Junction Boxes
16 Models,Texture powder coated RAL 7035
150H x 150W x 80D ~ 300W x 800H x 155D
Supply includes: Enclosure with 1800 hinged door, 3mm double bit cam lock(s), Internal
galvanised mounting plate.
Available accessories include: Wall mounting Brackets
PSEB Overview
 RESOURCES: > PSEB Sizes PDF (89kb) > Steel Terminal Boxes (xxxkb)
CSPBS IP66 316 Stainless Steel Push Button station

CSPB Series - IP66 316 Stainless Steel Push Button Stations
12 Models,1.2mm, 316 Stainless Steel
120H x 120W x 90D ~ 220 (320) H x 120 (180) w x 90 D
Supply includes: Enclosure, Internal Mounting Plate, Wall Mounting Plate
Available accessories include: 22mm Pilot Devices, I.E. Push buttons, Selector switches, Indicator lamps ETC.
RESOURCES: > CSPB Sizes PDF (80kb) > Stainless Terminal Boxes (xxxkb)

CSTB Series IP66 316 Stainless Terminal Boxes

CSTB Series - IP66 316 Stainless Steel Terminal / Junction Boxes
13 Models,1.2mm, 316 Stainless Steel
150H x 150W x 80D ~ 400W x 300H x 120D
Supply includes: Enclosure,
Available accessories include: DIN rail mounting rail, Mounting plate
RESOURCES: > CSPB Sizes PDF (81kb) > Stainless Terminal Boxes (80kb)

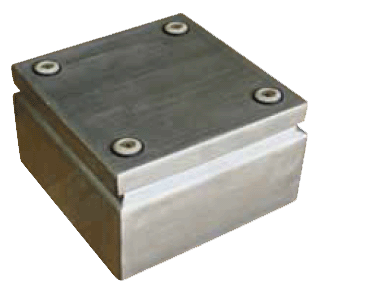

PSKLS IP66 304 Stainless Terminal Boxes

PSKLS Series - IP66 316 Stainless Steel Terminal / Junction Boxes
12 Models,1.2mm, 316 Stainless Steel
50H x 150W x 80D ~ 300W x 800H x 155D
Supply includes: Enclosure
Available accessories include: Wall mounting Brackets, Mounting plates
RESOURCES: > PSKLS Sizes PDF (81kb) > Stainless Terminal Boxes (81kb)

CSTSL IP67 316 Stainless Terminal Boxes

CSTB-67 Series- IP67 316 Stainless Steel Terminal / Junction Boxes
5 Models,1.2mm, 316 Stainless Steel
90H x 90W x 85D ~ 300H x 400W x 150D
Supply includes: Enclosure, Mounting plate, External wall mounting holes, Externally (to seal) fixed cover
Available accessories include:
RESOURCES: > CSPB Sizes PDF (81kb) > Stainless Terminal Boxes (xxxkb)



Table 1: Sorted by Depth x Height x Width
(GOTO Table 2: Height x Width x Depth)

Depth = 34mm + general dimensional structure of Peekn Services terminal boxes
Depth = 81mm +
Depth = 111mm +
Depth = 120D +
Depth = 135D +
Depth = 181D +

Depth = 34mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
            Family
Model # Height Width Depth IP Description: (link)

PSGA586434  58 64 34 66 Alu Term Box, RAL 7001 PSGA
PSGA586434  64 58 34 66 Alu Term Box, RAL 7001 PSGA
PSGA986435  64 98 35 66 Alu Term Box, RAL 7001 PSGA
PSGA986435  98 64 35 66 Alu Term Box, RAL 7001 PSGA
PSPK656557G 65 65 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK656557G 65 65 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK659457G 65 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK946557G 65 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSGA758057  75 80 57 66 Alu Term Box, RAL 7001 PSGA
PSGA758057  80 75 57 66 Alu Term Box, RAL 7001 PSGA
PSGA128057  80 125 57 66 Alu Term Box, RAL 7001 PSGA
PSGA178057  80 175 57 66 Alu Term Box, RAL 7001 PSGA
PSPK659457G 94 65 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK946557G 94 65 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK949457G 94 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK949457G 94 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK139457G 94 130 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK941357G 94 130 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK189457G 94 180 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK941857G 94 180 57 66 PC Term / Project Box, Gry Lid PSPK
PSGA128057  125 80 57 66 Alu Term Box, RAL 7001 PSGA
PSPK139457G 130 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK941357G 130 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSGA178057  175 80 57 66 Alu Term Box, RAL 7001 PSGA
PSPK189457G 180 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK941857G 180 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK131375G 130 130 75 66 PC Term / Project Box, Gry Lid PSPK
PSPK131375G 130 130 75 66 PC Term / Project Box, Gry Lid PSPK
PSGA258080  80 250 80 66 Alu Term Box, RAL 7001 PSGA
PSEB151508 150 150 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB151508 150 150 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM151580 150 150 80 66 MS Term Box, RAL 7035 PSKLM
PSKLM151580 150 150 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS151580-4 150 150 80 66 Term. Box, 304 Stainless PSKLS
PSKLS151580-4 150 150 80 66 Term. Box, 304 Stainless PSKLS
PSKLS151580-6 150 150 80 66 Term. Box, 316 Stainless PSKLS
PSKLS151580-6 150 150 80 66 Term. Box, 316 Stainless PSKLS
CSTB151580 150 150 80 66 316 Stainless Terminal Box CSTB
PSKLM201580 150 200 80 66 MS Term Box, RAL 7035 PSKLM
PSEB153008 150 300 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM301580 150 300 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS301580-4 150 300 80 66 Term. Box, 304 Stainless PSKLS
PSKLS301580-6 150 300 80 66 Term. Box, 316 Stainless PSKLS
CSTB153080 150 300 80 66 316 Stainless Terminal Box CSTB
PSKLM201580 200 150 80 66 MS Term Box, RAL 7035 PSKLM
PSEB202008 200 200 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB202008 200 200 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM202080 200 200 80 66 MS Term Box, RAL 7035 PSKLM
PSKLM202080 200 200 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS202080-4 200 200 80 66 Term. Box, 304 Stainless PSKLS
PSKLS202080-4 200 200 80 66 Term. Box, 304 Stainless PSKLS
PSKLS202080-6 200 200 80 66 Term. Box, 316 Stainless PSKLS
PSKLS202080-6 200 200 80 66 Term. Box, 316 Stainless PSKLS
CSTB202080 200 200 80 66 316 Stainless Terminal Box CSTB
PSEB203008 200 300 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM302080 200 300 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS302080-4 200 300 80 66 Term. Box, 304 Stainless PSKLS
PSKLS302080-6 200 300 80 66 Term. Box, 316 Stainless PSKLS
CSTB203080 200 300 80 66 316 Stainless Terminal Box CSTB
PSEB204008 200 400 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM402080 200 400 80 66 MS Term Box, RAL 7035 PSKLM
CSTB204080 200 400 80 66 316 Stainless Terminal Box CSTB
PSKLM602080 200 600 80 66 MS Term Box, RAL 7035 PSKLM
PSGA258080  250 80 80 66 Alu Term Box, RAL 7001 PSGA
PSEB153008 300 150 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM301580 300 150 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS301580-4 300 150 80 66 Term. Box, 304 Stainless PSKLS
PSKLS301580-6 300 150 80 66 Term. Box, 316 Stainless PSKLS
PSEB203008 300 200 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM302080 300 200 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS302080-4 300 200 80 66 Term. Box, 304 Stainless PSKLS
PSKLS302080-6 300 200 80 66 Term. Box, 316 Stainless PSKLS
CSTB304080 300 400 80 66 316 Stainless Terminal Box CSTB
PSEB204008 400 200 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM402080 400 200 80 66 MS Term Box, RAL 7035 PSKLM
PSKLM602080 600 200 80 66 MS Term Box, RAL 7035 PSKLM

Depth = 81mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
            Family
Model # Height Width Depth IP Description: (link)

PSPK949481G 94 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK949481G 94 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK139481G 94 130 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK941381G 94 130 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK189481G 94 180 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK941881G 94 180 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK139481G 130 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK941381G 130 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK189481G 180 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK941881G 180 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSGA221282  120 220 82 66 Alu Term Box, RAL 7001 PSGA
PSGA221282  220 120 82 66 Alu Term Box, RAL 7001 PSGA
CSTB909085-67 90 90 85 67 316 Stainless Terminal Box CSTB-67
CSTB902185-67 90 215 85 67 316 Stainless Terminal Box CSTB-67
CSTB212185-67 210 210 85 67 316 Stainless Terminal Box CSTB-67
PSPK111190G 110 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111190G 110 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111890G 110 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111890T 110 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181190G 110 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181190T 110 180 90 66 PC Term / Project Box, Gry Lid PSPK
CSPB121290-0 120 120 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB121290-1 120 120 90 66 316, PBS, 1 Holes, Stainless CSPB
CSPB121690-0 120 160 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB121690-2 120 160 90 66 316, PBS, 2 Holes, Stainless CSPB
CSPB122290-0 120 220 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB122290-3 120 220 90 66 316, PBS, 3 Holes, Stainless CSPB
CSPB122890-0 120 280 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB122890-4 120 280 90 66 316, PBS, 4 Holes, Stainless CSPB
CSPB123290-0 120 320 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB123290-5 120 320 90 66 316, PBS, 5 Holes, Stainless CSPB
ELA151595 150 150 90 66 MS Term. Box, RAL 7035 ELA
PSPK111890G 180 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111890T 180 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181190G 180 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181190T 180 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890G 180 182 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890G 180 182 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890T 180 182 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890T 180 182 90 66 PC Term / Project Box, Gry Lid PSPK
CSPB182290-0 180 220 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB182290-6 180 220 90 66 316, PBS, 6 Holes, Stainless CSPB
PSPK182590G 180 254 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK182590T 180 254 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK251890G 180 254 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK251890T 180 254 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890G 182 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890G 182 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890T 182 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890T 182 180 90 66 PC Term / Project Box, Gry Lid PSPK
ELA201595 200 150 90 66 MS Term. Box, RAL 7035 ELA
ELA202095 200 200 90 66 MS Term. Box, RAL 7035 ELA
PSPK182590G 254 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK182590T 254 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK251890G 254 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK251890T 254 180 90 66 PC Term / Project Box, Gry Lid PSPK
ELA301595 300 150 90 66 MS Term. Box, RAL 7035 ELA
ELA302095 300 200 90 66 MS Term. Box, RAL 7035 ELA
ELA402095 400 200 90 66 MS Term. Box, RAL 7035 ELA
PSGA121291  120 122 91 66 Alu Term Box, RAL 7001 PSGA
PSGA361291  120 360 91 66 Alu Term Box, RAL 7001 PSGA
PSGA121291  122 120 91 66 Alu Term Box, RAL 7001 PSEB
PSGA161691  160 160 91 66 Alu Term Box, RAL 7001 PSGA
PSGA161691  160 160 91 66 Alu Term Box, RAL 7001 PSGA
PSGA261691  160 260 91 66 Alu Term Box, RAL 7001 PSGA
PSGA261691  260 160 91 66 Alu Term Box, RAL 7001 PSGA
PSGA361291  360 120 91 66 Alu Term Box, RAL 7001 PSGA
PSPK131399G 130 130 99 66 PC Term / Project Box, Gry Lid PSPK
PSPK131399G 130 130 99 66 PC Term / Project Box, Gry Lid PSPK

Depth = 111 mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
            Family
Model # Height Width Depth IP Description: (link)

PSPK111811G 110 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK111811T 110 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181111G 110 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181111T 110 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSGA201611  160 202 111 66 Alu Term Box, RAL 7001 PSGA
PSGA361611  160 360 111 66 Alu Term Box, RAL 7001 PSGA
PSPK111811G 180 110 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK111811T 180 110 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181111G 180 110 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181111T 180 110 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811G 180 182 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811G 180 182 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811T 180 182 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811T 180 182 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK182511G 180 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK182511T 180 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK251811G 180 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK251811T 180 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811G 182 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811G 182 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811T 182 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811T 182 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSGA201611  202 160 111 66 Alu Term Box, RAL 7001 PSGA
PSGA282311  232 280 111 66 Alu Term Box, RAL 7001 PSGA
PSGA332311  233 334 111 66 Alu Term Box, RAL 7001 PSGA
PSPK182511G 254 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK182511T 254 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK251811G 254 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK251811T 254 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK253611G 254 360 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK253611T 254 360 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK362511G 254 360 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK362511T 254 360 111 66 PC Term / Project Box, Gry Lid PSPK
PSGA282311  280 232 111 66 Alu Term Box, RAL 7001 PSGA
PSGA332311  334 233 111 66 Alu Term Box, RAL 7001 PSGA
PSGA361611  360 160 111 66 Alu Term Box, RAL 7001 PSGA
PSPK253611G 360 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK253611T 360 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK362511G 360 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK362511T 360 254 111 66 PC Term / Project Box, Gry Lid PSPK

Depth = 120 mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
            Family
Model # Height Width Depth IP Description: (link)

PSEB151512 150 150 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB151512 150 150 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM151512 150 150 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM151512 150 150 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS151512-4 150 150 120 66 Term. Box, 304 Stainless PSKLS
PSKLS151512-4 150 150 120 66 Term. Box, 304 Stainless PSKLS
CSTB151512 150 150 120 66 316 Stainless Terminal Box CSTB
PSKLM201512 150 200 120 66 MS Term Box, RAL 7035 PSKLM
PSEB153012 150 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM301512 150 300 120 66 MS Term Box, RAL 7035 PSKLM
CSTB153012 150 300 120 66 316 Stainless Terminal Box CSTB
PSKLM401512 150 400 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM201512 200 150 120 66 MS Term Box, RAL 7035 PSKLM
PSEB202012 200 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB202012 200 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM202012 200 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM202012 200 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS202012-4 200 200 120 66 Term. Box, 304 Stainless PSKLS
PSKLS202012-4 200 200 120 66 Term. Box, 304 Stainless PSKLS
CSTB202012 200 200 120 66 316 Stainless Terminal Box CSTB
PSEB203012 200 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM302012 200 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS302012-4 200 300 120 66 Term. Box, 304 Stainless PSKLS
CSTB203012 200 300 120 66 316 Stainless Terminal Box CSTB
PSEB204012 200 400 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM402012 200 400 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS402012-4 200 400 120 66 Term. Box, 304 Stainless PSKLS
PSKLS402012-6 200 400 120 66 Term. Box, 316 Stainless PSKLS
CSTB204012 200 400 120 66 316 Stainless Terminal Box CSTB
PSEB205012 200 500 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM502012 200 500 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM602012 200 600 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM802012 200 800 120 66 MS Term Box, RAL 7035 PSKLM
PSEB153012 300 150 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM301512 300 150 120 66 MS Term Box, RAL 7035 PSKLM
PSEB203012 300 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM302012 300 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS302012-4 300 200 120 66 Term. Box, 304 Stainless PSKLS
PSEB303012 300 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB303012 300 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM303012 300 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM303012 300 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS303012-4 300 300 120 66 Term. Box, 304 Stainless PSKLS
PSKLS303012-4 300 300 120 66 Term. Box, 304 Stainless PSKLS
PSKLS303012-6 300 300 120 66 Term. Box, 316 Stainless PSKLS
PSKLS303012-6 300 300 120 66 Term. Box, 316 Stainless PSKLS
PSEB304012 300 400 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM403012 300 400 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS403012-4 300 400 120 66 Term. Box, 304 Stainless PSKLS
CSTB304012 300 400 120 66 316 Stainless Terminal Box CSTB
PSKLM503012 300 500 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM603012 300 600 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM401512 400 150 120 66 MS Term Box, RAL 7035 PSKLM
PSEB204012 400 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM402012 400 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS402012-4 400 200 120 66 Term. Box, 304 Stainless PSKLS
PSKLS402012-6 400 200 120 66 Term. Box, 316 Stainless PSKLS
PSEB304012 400 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM403012 400 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS403012-4 400 300 120 66 Term. Box, 304 Stainless PSKLS
PSKLM404012 400 400 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM404012 400 400 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM604012 400 600 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM804012 400 800 120 66 MS Term Box, RAL 7035 PSKLM
PSEB205012 500 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM502012 500 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM503012 500 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM602012 600 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM603012 600 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM604012 600 400 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM802012 800 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM804012 800 400 120 66 MS Term Box, RAL 7035 PSKLM

Depth = 135 mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
            Family
Model # Height Width Depth IP Description: (link)

ELA1515135 150 150 135 66 MS Term. Box, RAL 7035 ELA
ELA2015135 200 150 135 66 MS Term. Box, RAL 7035 ELA
ELA2020135 200 200 135 66 MS Term. Box, RAL 7035 ELA
ELA3015135 300 150 135 66 MS Term. Box, RAL 7035 ELA
ELA3020135 300 200 135 66 MS Term. Box, RAL 7035 ELA
ELA3030135 300 300 135 66 MS Term. Box, RAL 7035 ELA
ELA4020135 400 200 135 66 MS Term. Box, RAL 7035 ELA
ELA4030135 400 300 135 66 MS Term. Box, RAL 7035 ELA
ELA4040135 400 400 135 66 MS Term. Box, RAL 7035 ELA
ELA5030135 500 200 135 66 MS Term. Box, RAL 7035 ELA
ELA5030135 500 300 135 66 MS Term. Box, RAL 7035 ELA
ELA6020135 600 200 135 66 MS Term. Box, RAL 7035 ELA
GEAP181514T 151 186 140 66 ABS Term Box, Trans, Lid GEAP
GEAP181514G 151 186 140 66 ABS Term Box, Grey, Lid GEAP
GEAP181514T 186 151 140 66 ABS Term Box, Trans, Lid GEAP
GEAP181514G 186 151 140 66 ABS Term Box, Grey, Lid GEAP
CSTB303015 300 300 150 66 316 Stainless Terminal Box CSTB
CSTB303015-67 300 300 150 67 316 Stainless Terminal Box CSTB-67
CSTB403015-67 400 300 150 67 316 Stainless Terminal Box CSTB-67
PSEB304015 300 400 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB306015 300 600 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB308015 300 800 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB304015 400 300 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB306015 600 300 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB308015 800 300 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSPK111116G 110 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK111816G 110 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK111816T 110 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181116G 110 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181116T 110 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK111816G 180 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK111816T 180 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181116G 180 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181116T 180 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816G 180 182 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816G 180 182 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816T 180 182 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816T 180 182 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK182516G 180 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK182516T 180 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK251816G 180 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK251816T 180 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816G 182 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816G 182 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816T 182 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816T 182 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK182516G 254 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK182516T 254 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK251816G 254 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK251816T 254 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK253616G 254 360 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK253616T 254 360 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK362516G 254 360 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK362516T 254 360 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK253616G 360 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK253616T 360 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK362516G 360 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK362516T 360 254 165 66 PC Term / Project Box, Gry Lid PSPK
GEAP301817T 186 302 175 66 ABS Term Box, Trans, Lid GEAP
GEAP301817G 186 302 175 66 ABS Term Box, Grey, Lid GEAP
GEAP301817T 302 186 175 66 ABS Term Box, Trans, Lid GEAP
GEAP301817G 302 186 175 66 ABS Term Box, Grey, Lid GEAP
GEAP303017T 302 302 175 66 ABS Term Box, Trans, Lid GEAP
GEAP303017T 302 302 175 66 ABS Term Box, Trans, Lid GEAP
GEAP303017G 302 302 175 66 ABS Term Box, Grey, Lid GEAP
GEAP303017G 302 302 175 66 ABS Term Box, Grey, Lid GEAP
GEAP373017T 302 372 175 66 ABS Term Box, Trans, Lid GEAP
GEAP373017G 302 372 175 66 ABS Term Box, Grey, Lid GEAP
GEAP373017T 372 302 175 66 ABS Term Box, Trans, Lid GEAP
GEAP373017G 372 302 175 66 ABS Term Box, Grey, Lid GEAP

Depth = 181mm +   NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
            Family
Model # Height Width Depth IP Description: (link)

PSGA332318  230 330 181 66 Alu Term Box, RAL 7001 PSGA
PSGA332318  330 230 181 66 Alu Term Box, RAL 7001 PSGA
GEAP483021T 302 488 210 66 ABS Term Box, Trans, Lid GEAP
GEAP483021G 302 488 210 66 ABS Term Box, Grey, Lid GEAP
GEAP553021T 302 558 210 66 ABS Term Box, Trans, Lid GEAP
GEAP553021G 302 558 210 66 ABS Term Box, Grey, Lid GEAP
GEAP603021T 302 603 210 66 ABS Term Box, Trans, Lid GEAP
GEAP603021G 302 603 210 66 ABS Term Box, Grey, Lid GEAP
GEAP603721T 372 603 210 66 ABS Term Box, Trans, Lid GEAP
GEAP603721G 372 603 210 66 ABS Term Box, Grey, Lid GEAP
GEAP483021T 488 302 210 66 ABS Term Box, Trans, Lid GEAP
GEAP483021G 488 302 210 66 ABS Term Box, Grey, Lid GEAP
GEAP553021T 558 302 210 66 ABS Term Box, Trans, Lid GEAP
GEAP553021G 558 302 210 66 ABS Term Box, Grey, Lid GEAP
GEAP603021T 603 302 210 66 ABS Term Box, Trans, Lid GEAP
GEAP603021G 603 302 210 66 ABS Term Box, Grey, Lid GEAP
GEAP603721T 603 372 210 66 ABS Term Box, Trans, Lid GEAP
GEAP603721G 603 372 210 66 ABS Term Box, Grey, Lid GEAP
GEAP606021T 603 603 210 66 ABS Term Box, Trans, Lid GEAP
GEAP606021T 603 603 210 66 ABS Term Box, Trans, Lid GEAP
GEAP606021G 603 603 210 66 ABS Term Box, Grey, Lid GEAP
GEAP606021G 603 603 210 66 ABS Term Box, Grey, Lid GEAP
Table 2: Sorted by Height x Width x Depth
Height = 58mm + general dimensional structure of Peekn Services terminal boxes
Height = 120mm +
Height = 151mm +
Height = 182mm +
Height = 250mm +
Height = 302mm +
Height = 500mm +
Height = 58mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
Family
Model # Height Width Depth IP Description: (link)
PSGA586434  58 64 34 66 Alu Term Box, RAL 7001 PSGA
PSGA586434  64 58 34 66 Alu Term Box, RAL 7001 PSGA
PSGA986435  64 98 35 66 Alu Term Box, RAL 7001 PSGA
PSPK656557G 65 65 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK656557G 65 65 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK659457G 65 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK946557G 65 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSGA758057  75 80 57 66 Alu Term Box, RAL 7001 PSGA
PSGA758057  80 75 57 66 Alu Term Box, RAL 7001 PSGA
PSGA128057  80 125 57 66 Alu Term Box, RAL 7001 PSGA
PSGA178057  80 175 57 66 Alu Term Box, RAL 7001 PSGA
PSGA258080  80 250 80 66 Alu Term Box, RAL 7001 PSGA
CSTB909085-67 90 90 85 67 316 Stainless Terminal Box CSTB-67
CSTB902185-67 90 215 85 67 316 Stainless Terminal Box CSTB-67
PSPK659457G 94 65 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK946557G 94 65 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK949457G 94 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK949457G 94 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK949481G 94 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK949481G 94 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK139457G 94 130 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK941357G 94 130 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK139481G 94 130 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK941381G 94 130 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK189457G 94 180 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK941857G 94 180 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK189481G 94 180 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK941881G 94 180 81 66 PC Term / Project Box, Gry Lid PSPK
PSGA986435  98 64 35 66 Alu Term Box, RAL 7001 PSGA
PSPK111190G 110 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111190G 110 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111116G 110 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK111890G 110 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111890T 110 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181190G 110 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181190T 110 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111811G 110 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK111811T 110 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181111G 110 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181111T 110 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK111816G 110 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK111816T 110 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181116G 110 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181116T 110 180 165 66 PC Term / Project Box, Gry Lid PSPK
Height = 120mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
Family
Model # Height Width Depth IP Description: (link)
CSPB121290-0 120 120 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB121290-1 120 120 90 66 316, PBS, 1 Holes, Stainless CSPB
PSGA121291  120 122 91 66 Alu Term Box, RAL 7001 PSGA
CSPB121690-0 120 160 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB121690-2 120 160 90 66 316, PBS, 2 Holes, Stainless CSPB
PSGA221282  120 220 82 66 Alu Term Box, RAL 7001 PSGA
CSPB122290-0 120 220 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB122290-3 120 220 90 66 316, PBS, 3 Holes, Stainless CSPB
CSPB122890-0 120 280 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB122890-4 120 280 90 66 316, PBS, 4 Holes, Stainless CSPB
CSPB123290-0 120 320 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB123290-5 120 320 90 66 316, PBS, 5 Holes, Stainless CSPB
PSGA361291  120 360 91 66 Alu Term Box, RAL 7001 PSGA
PSGA121291  122 120 91 66 Alu Term Box, RAL 7001 PSEB
PSGA128057  125 80 57 66 Alu Term Box, RAL 7001 PSGA
PSPK139457G 130 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK941357G 130 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK139481G 130 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK941381G 130 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK131375G 130 130 75 66 PC Term / Project Box, Gry Lid PSPK
PSPK131375G 130 130 75 66 PC Term / Project Box, Gry Lid PSPK
PSPK131399G 130 130 99 66 PC Term / Project Box, Gry Lid PSPK
PSPK131399G 130 130 99 66 PC Term / Project Box, Gry Lid PSPK
PSEB151508 150 150 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB151508 150 150 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM151580 150 150 80 66 MS Term Box, RAL 7035 PSKLM
PSKLM151580 150 150 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS151580-4 150 150 80 66 Term. Box, 304 Stainless PSKLS
PSKLS151580-4 150 150 80 66 Term. Box, 304 Stainless PSKLS
PSKLS151580-6 150 150 80 66 Term. Box, 316 Stainless PSKLS
PSKLS151580-6 150 150 80 66 Term. Box, 316 Stainless PSKLS
CSTB151580 150 150 80 66 316 Stainless Terminal Box CSTB
ELA151595 150 150 90 66 MS Term. Box, RAL 7035 ELA
PSEB151512 150 150 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB151512 150 150 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM151512 150 150 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM151512 150 150 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS151512-4 150 150 120 66 Term. Box, 304 Stainless PSKLS
PSKLS151512-4 150 150 120 66 Term. Box, 304 Stainless PSKLS
CSTB151512 150 150 120 66 316 Stainless Terminal Box CSTB
ELA1515135 150 150 135 66 MS Term. Box, RAL 7035 ELA
PSKLM201580 150 200 80 66 MS Term Box, RAL 7035 PSKLM
PSKLM201512 150 200 120 66 MS Term Box, RAL 7035 PSKLM
PSEB153008 150 300 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM301580 150 300 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS301580-4 150 300 80 66 Term. Box, 304 Stainless PSKLS
PSKLS301580-6 150 300 80 66 Term. Box, 316 Stainless PSKLS
CSTB153080 150 300 80 66 316 Stainless Terminal Box CSTB
PSEB153012 150 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM301512 150 300 120 66 MS Term Box, RAL 7035 PSKLM
CSTB153012 150 300 120 66 316 Stainless Terminal Box CSTB
PSKLM401512 150 400 120 66 MS Term Box, RAL 7035 PSKLM
Height = 151mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
Family
Model # Height Width Depth IP Description: (link)
GEAP181514T 151 186 140 66 ABS Term Box, Trans, Lid GEAP
GEAP181514G 151 186 140 66 ABS Term Box, Grey, Lid GEAP
PSGA161691  160 160 91 66 Alu Term Box, RAL 7001 PSGA
PSGA161691  160 160 91 66 Alu Term Box, RAL 7001 PSGA
PSGA201611  160 202 111 66 Alu Term Box, RAL 7001 PSGA
PSGA261691  160 260 91 66 Alu Term Box, RAL 7001 PSGA
PSGA361611  160 360 111 66 Alu Term Box, RAL 7001 PSGA
PSGA178057  175 80 57 66 Alu Term Box, RAL 7001 PSGA
PSPK189457G 180 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK941857G 180 94 57 66 PC Term / Project Box, Gry Lid PSPK
PSPK189481G 180 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK941881G 180 94 81 66 PC Term / Project Box, Gry Lid PSPK
PSPK111890G 180 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111890T 180 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181190G 180 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181190T 180 110 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK111811G 180 110 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK111811T 180 110 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181111G 180 110 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181111T 180 110 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK111816G 180 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK111816T 180 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181116G 180 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181116T 180 110 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890G 180 182 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890G 180 182 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890T 180 182 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890T 180 182 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811G 180 182 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811G 180 182 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811T 180 182 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811T 180 182 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816G 180 182 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816G 180 182 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816T 180 182 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816T 180 182 165 66 PC Term / Project Box, Gry Lid PSPK
CSPB182290-0 180 220 90 66 316, PBS, 0 Holes, Stainless CSPB
CSPB182290-6 180 220 90 66 316, PBS, 6 Holes, Stainless CSPB
PSPK182590G 180 254 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK182590T 180 254 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK251890G 180 254 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK251890T 180 254 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK182511G 180 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK182511T 180 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK251811G 180 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK251811T 180 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK182516G 180 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK182516T 180 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK251816G 180 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK251816T 180 254 165 66 PC Term / Project Box, Gry Lid PSPK
Height = 182mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
Family
Model # Height Width Depth IP Description: (link)
PSPK181890G 182 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890G 182 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890T 182 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181890T 182 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811G 182 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811G 182 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811T 182 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181811T 182 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816G 182 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816G 182 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816T 182 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK181816T 182 180 165 66 PC Term / Project Box, Gry Lid PSPK
GEAP181514T 186 151 140 66 ABS Term Box, Trans, Lid GEAP
GEAP181514G 186 151 140 66 ABS Term Box, Grey, Lid GEAP
GEAP301817T 186 302 175 66 ABS Term Box, Trans, Lid GEAP
GEAP301817G 186 302 175 66 ABS Term Box, Grey, Lid GEAP
PSKLM201580 200 150 80 66 MS Term Box, RAL 7035 PSKLM
ELA201595 200 150 90 66 MS Term. Box, RAL 7035 ELA
PSKLM201512 200 150 120 66 MS Term Box, RAL 7035 PSKLM
ELA2015135 200 150 135 66 MS Term. Box, RAL 7035 ELA
PSEB202008 200 200 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB202008 200 200 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM202080 200 200 80 66 MS Term Box, RAL 7035 PSKLM
PSKLM202080 200 200 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS202080-4 200 200 80 66 Term. Box, 304 Stainless PSKLS
PSKLS202080-4 200 200 80 66 Term. Box, 304 Stainless PSKLS
PSKLS202080-6 200 200 80 66 Term. Box, 316 Stainless PSKLS
PSKLS202080-6 200 200 80 66 Term. Box, 316 Stainless PSKLS
CSTB202080 200 200 80 66 316 Stainless Terminal Box CSTB
ELA202095 200 200 90 66 MS Term. Box, RAL 7035 ELA
PSEB202012 200 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB202012 200 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM202012 200 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM202012 200 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS202012-4 200 200 120 66 Term. Box, 304 Stainless PSKLS
PSKLS202012-4 200 200 120 66 Term. Box, 304 Stainless PSKLS
CSTB202012 200 200 120 66 316 Stainless Terminal Box CSTB
ELA2020135 200 200 135 66 MS Term. Box, RAL 7035 ELA
PSEB203008 200 300 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM302080 200 300 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS302080-4 200 300 80 66 Term. Box, 304 Stainless PSKLS
PSKLS302080-6 200 300 80 66 Term. Box, 316 Stainless PSKLS
CSTB203080 200 300 80 66 316 Stainless Terminal Box CSTB
PSEB203012 200 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM302012 200 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS302012-4 200 300 120 66 Term. Box, 304 Stainless PSKLS
CSTB203012 200 300 120 66 316 Stainless Terminal Box CSTB
PSEB204008 200 400 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM402080 200 400 80 66 MS Term Box, RAL 7035 PSKLM
CSTB204080 200 400 80 66 316 Stainless Terminal Box CSTB
PSEB204012 200 400 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM402012 200 400 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS402012-4 200 400 120 66 Term. Box, 304 Stainless PSKLS
PSKLS402012-6 200 400 120 66 Term. Box, 316 Stainless PSKLS
CSTB204012 200 400 120 66 316 Stainless Terminal Box CSTB
PSEB205012 200 500 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM502012 200 500 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM602080 200 600 80 66 MS Term Box, RAL 7035 PSKLM
PSKLM602012 200 600 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM802012 200 800 120 66 MS Term Box, RAL 7035 PSKLM
PSGA201611  202 160 111 66 Alu Term Box, RAL 7001 PSGA
CSTB212185-67 210 210 85 67 316 Stainless Terminal Box CSTB-67
PSGA221282  220 120 82 66 Alu Term Box, RAL 7001 PSGA
PSGA332318  230 330 181 66 Alu Term Box, RAL 7001 PSGA
PSGA282311  232 280 111 66 Alu Term Box, RAL 7001 PSGA
PSGA332311  233 334 111 66 Alu Term Box, RAL 7001 PSGA
Height = 250mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
Family
Model # Height Width Depth IP Description: (link)
PSGA258080  250 80 80 66 Alu Term Box, RAL 7001 PSGA
PSPK182590G 254 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK182590T 254 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK251890G 254 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK251890T 254 180 90 66 PC Term / Project Box, Gry Lid PSPK
PSPK182511G 254 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK182511T 254 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK251811G 254 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK251811T 254 180 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK182516G 254 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK182516T 254 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK251816G 254 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK251816T 254 180 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK253611G 254 360 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK253611T 254 360 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK362511G 254 360 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK362511T 254 360 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK253616G 254 360 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK253616T 254 360 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK362516G 254 360 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK362516T 254 360 165 66 PC Term / Project Box, Gry Lid PSPK
PSGA261691  260 160 91 66 Alu Term Box, RAL 7001 PSGA
PSGA282311  280 232 111 66 Alu Term Box, RAL 7001 PSGA
PSEB153008 300 150 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM301580 300 150 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS301580-4 300 150 80 66 Term. Box, 304 Stainless PSKLS
PSKLS301580-6 300 150 80 66 Term. Box, 316 Stainless PSKLS
ELA301595 300 150 90 66 MS Term. Box, RAL 7035 ELA
PSEB153012 300 150 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM301512 300 150 120 66 MS Term Box, RAL 7035 PSKLM
ELA3015135 300 150 135 66 MS Term. Box, RAL 7035 ELA
PSEB203008 300 200 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM302080 300 200 80 66 MS Term Box, RAL 7035 PSKLM
PSKLS302080-4 300 200 80 66 Term. Box, 304 Stainless PSKLS
PSKLS302080-6 300 200 80 66 Term. Box, 316 Stainless PSKLS
ELA302095 300 200 90 66 MS Term. Box, RAL 7035 ELA
PSEB203012 300 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM302012 300 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS302012-4 300 200 120 66 Term. Box, 304 Stainless PSKLS
ELA3020135 300 200 135 66 MS Term. Box, RAL 7035 ELA
PSEB303012 300 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB303012 300 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM303012 300 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM303012 300 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS303012-4 300 300 120 66 Term. Box, 304 Stainless PSKLS
PSKLS303012-4 300 300 120 66 Term. Box, 304 Stainless PSKLS
PSKLS303012-6 300 300 120 66 Term. Box, 316 Stainless PSKLS
PSKLS303012-6 300 300 120 66 Term. Box, 316 Stainless PSKLS
ELA3030135 300 300 135 66 MS Term. Box, RAL 7035 ELA
CSTB303015 300 300 150 66 316 Stainless Terminal Box CSTB
CSTB303015-67 300 300 150 67 316 Stainless Terminal Box CSTB-67
CSTB304080 300 400 80 66 316 Stainless Terminal Box CSTB
PSEB304012 300 400 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM403012 300 400 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS403012-4 300 400 120 66 Term. Box, 304 Stainless PSKLS
CSTB304012 300 400 120 66 316 Stainless Terminal Box CSTB
PSEB304015 300 400 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM503012 300 500 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM603012 300 600 120 66 MS Term Box, RAL 7035 PSKLM
PSEB306015 300 600 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSEB308015 300 800 155 66 MS Hinged Term Box, RAL 7035 PSEB
Height = 302mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
Family
Model # Height Width Depth IP Description: (link)
GEAP301817T 302 186 175 66 ABS Term Box, Trans, Lid GEAP
GEAP301817G 302 186 175 66 ABS Term Box, Grey, Lid GEAP
GEAP303017T 302 302 175 66 ABS Term Box, Trans, Lid GEAP
GEAP303017T 302 302 175 66 ABS Term Box, Trans, Lid GEAP
GEAP303017G 302 302 175 66 ABS Term Box, Grey, Lid GEAP
GEAP303017G 302 302 175 66 ABS Term Box, Grey, Lid GEAP
GEAP373017T 302 372 175 66 ABS Term Box, Trans, Lid GEAP
GEAP373017G 302 372 175 66 ABS Term Box, Grey, Lid GEAP
GEAP483021T 302 488 210 66 ABS Term Box, Trans, Lid GEAP
GEAP483021G 302 488 210 66 ABS Term Box, Grey, Lid GEAP
GEAP553021T 302 558 210 66 ABS Term Box, Trans, Lid GEAP
GEAP553021G 302 558 210 66 ABS Term Box, Grey, Lid GEAP
GEAP603021T 302 603 210 66 ABS Term Box, Trans, Lid GEAP
GEAP603021G 302 603 210 66 ABS Term Box, Grey, Lid GEAP
PSGA332318  330 230 181 66 Alu Term Box, RAL 7001 PSGA
PSGA332311  334 233 111 66 Alu Term Box, RAL 7001 PSGA
PSGA361291  360 120 91 66 Alu Term Box, RAL 7001 PSGA
PSGA361611  360 160 111 66 Alu Term Box, RAL 7001 PSGA
PSPK253611G 360 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK253611T 360 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK362511G 360 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK362511T 360 254 111 66 PC Term / Project Box, Gry Lid PSPK
PSPK253616G 360 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK253616T 360 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK362516G 360 254 165 66 PC Term / Project Box, Gry Lid PSPK
PSPK362516T 360 254 165 66 PC Term / Project Box, Gry Lid PSPK
GEAP373017T 372 302 175 66 ABS Term Box, Trans, Lid GEAP
GEAP373017G 372 302 175 66 ABS Term Box, Grey, Lid GEAP
GEAP603721T 372 603 210 66 ABS Term Box, Trans, Lid GEAP
GEAP603721G 372 603 210 66 ABS Term Box, Grey, Lid GEAP
PSKLM401512 400 150 120 66 MS Term Box, RAL 7035 PSKLM
PSEB204008 400 200 80 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM402080 400 200 80 66 MS Term Box, RAL 7035 PSKLM
ELA402095 400 200 90 66 MS Term. Box, RAL 7035 ELA
PSEB204012 400 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM402012 400 200 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS402012-4 400 200 120 66 Term. Box, 304 Stainless PSKLS
PSKLS402012-6 400 200 120 66 Term. Box, 316 Stainless PSKLS
ELA4020135 400 200 135 66 MS Term. Box, RAL 7035 ELA
PSEB304012 400 300 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM403012 400 300 120 66 MS Term Box, RAL 7035 PSKLM
PSKLS403012-4 400 300 120 66 Term. Box, 304 Stainless PSKLS
ELA4030135 400 300 135 66 MS Term. Box, RAL 7035 ELA
CSTB403015-67 400 300 150 67 316 Stainless Terminal Box CSTB-67
PSEB304015 400 300 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM404012 400 400 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM404012 400 400 120 66 MS Term Box, RAL 7035 PSKLM
ELA4040135 400 400 135 66 MS Term. Box, RAL 7035 ELA
PSKLM604012 400 600 120 66 MS Term Box, RAL 7035 PSKLM
PSKLM804012 400 800 120 66 MS Term Box, RAL 7035 PSKLM
GEAP483021T 488 302 210 66 ABS Term Box, Trans, Lid GEAP
GEAP483021G 488 302 210 66 ABS Term Box, Grey, Lid GEAP
Height = 500mm + NAV: Top of Page | Table 1 (top DHW) | Table 2 (top HWD)
Family
Model # Height Width Depth IP Description: (link)
PSEB205012 500 200 120 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM502012 500 200 120 66 MS Term Box, RAL 7035 PSKLM
ELA5030135 500 200 135 66 MS Term. Box, RAL 7035 ELA
PSKLM503012 500 300 120 66 MS Term Box, RAL 7035 PSKLM
ELA5030135 500 300 135 66 MS Term. Box, RAL 7035 ELA
GEAP553021T 558 302 210 66 ABS Term Box, Trans, Lid GEAP
GEAP553021G 558 302 210 66 ABS Term Box, Grey, Lid GEAP
PSKLM602080 600 200 80 66 MS Term Box, RAL 7035 PSKLM
PSKLM602012 600 200 120 66 MS Term Box, RAL 7035 PSKLM
ELA6020135 600 200 135 66 MS Term. Box, RAL 7035 ELA
PSKLM603012 600 300 120 66 MS Term Box, RAL 7035 PSKLM
PSEB306015 600 300 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM604012 600 400 120 66 MS Term Box, RAL 7035 PSKLM
GEAP603021T 603 302 210 66 ABS Term Box, Trans, Lid GEAP
GEAP603021G 603 302 210 66 ABS Term Box, Grey, Lid GEAP
GEAP603721T 603 372 210 66 ABS Term Box, Trans, Lid GEAP
GEAP603721G 603 372 210 66 ABS Term Box, Grey, Lid GEAP
GEAP606021T 603 603 210 66 ABS Term Box, Trans, Lid GEAP
GEAP606021T 603 603 210 66 ABS Term Box, Trans, Lid GEAP
GEAP606021G 603 603 210 66 ABS Term Box, Grey, Lid GEAP
GEAP606021G 603 603 210 66 ABS Term Box, Grey, Lid GEAP
PSKLM802012 800 200 120 66 MS Term Box, RAL 7035 PSKLM
PSEB308015 800 300 155 66 MS Hinged Term Box, RAL 7035 PSEB
PSKLM804012 800 400 120 66 MS Term Box, RAL 7035 PSKLM
